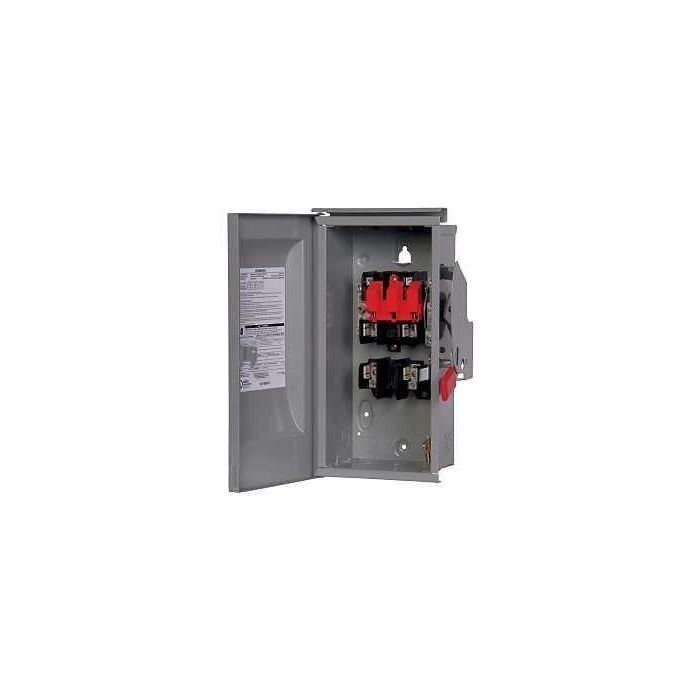

Siemens LF211NU Safety Switch 2 -Pole 30 A 240 V Lug Terminal
Out of stock
SKU
OG6929483
$40.45
Description
Single phase, 2-pole, 3-wire, solid neutral, 120/240 V. 10,000 AIC with plug fuses (not included). Metallic enclosure. Rated 1-1/2 hp standard/3 hp maximum. Compact size, quick-make, quick-break mechanism. Suitable for use as service entrance equipment. Cover interlock. Bottom cable entry and exit only, no hub provision supplied. Padlocking provision to lock cover closed or to lock in off position. Lugs suitable for copper or aluminum. Silver plated copper conductors. #14-6 AWG line, #14-8 load lug wire ranges. 5-1/2 in x 8-1/4 in x 5-13/16 in. UL listed file No.E4776, NEMA type GD, meets federal specifications WS865C. View more
Single phase, 2-pole, 3-wire, solid neutral, 120/240 V. 10,000 AIC with plug fuses (not included). Metallic enclosure. Rated 1-1/2 hp standard/3 hp maximum. Compact size, quick-make, quick-break mechanism. Suitable for use as service entrance equipment. Cover interlock. Bottom cable entry and exit only, no hub provision supplied. Padlocking provision to lock cover closed or to lock in off position. Lugs suitable for copper or aluminum. Silver plated copper conductors. #14-6 AWG line, #14-8 load lug wire ranges. 5-1/2 in x 8-1/4 in x 5-13/16 in. UL listed file No.E4776, NEMA type GD, meets federal specifications WS865C.
